84 Blue Quad Laser Grid
For Large FOV Scanning
54 Blue Quad Laser Grid
For Medium-distance Scanning

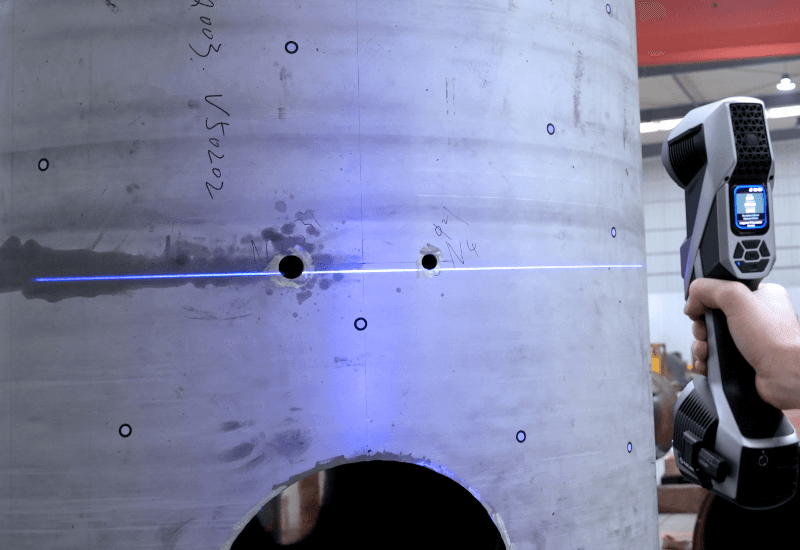

+1 Extra Blue Laser Mode
For Deep Hole Scanning

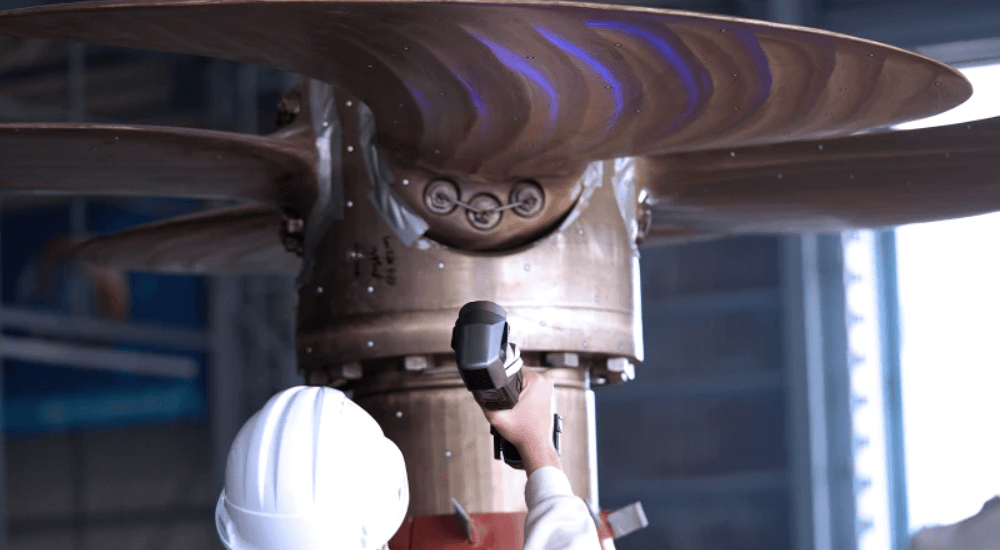

Unrivaled Scanning Range
Ultra-Large Scanning Area for Maximum Efficiency
Powered by SCANTECH’s proprietary algorithms, the KSCAN-X delivers an industry-leading scanning area of 2.6 m × 1.8 m—perfect for capturing ultra-large parts in a single sweep. This expansive coverage ensures faster, more efficient scans while maintaining exceptional precision, making it the ideal solution for industries working with massive components.

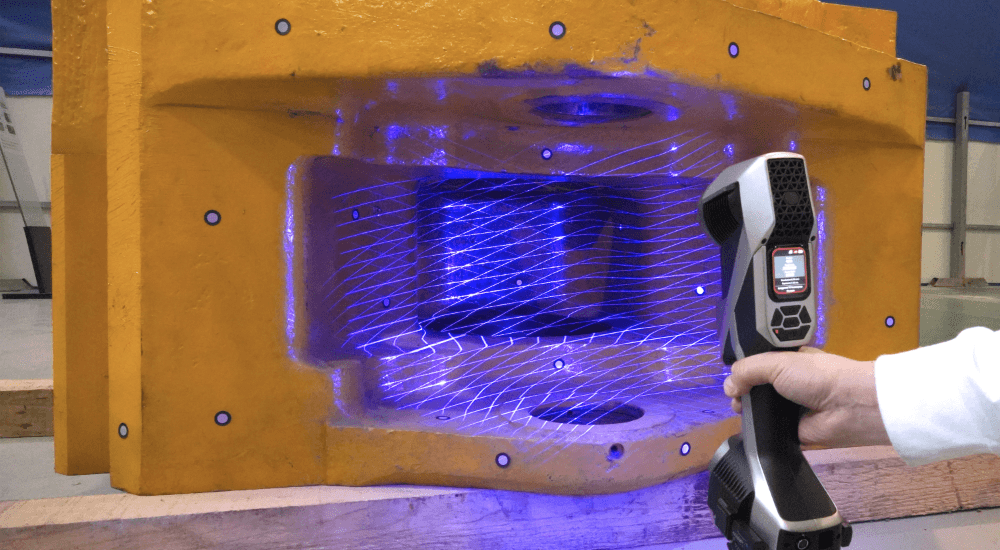

Uncompromising Accuracy and Depth of Field
Expansive Depth of Field for Unmatched Versatility
The KSCAN-X boasts an industry-leading depth of field (0.3–2.5 m), delivering high-precision scans for everything from medium to ultra-large parts. This exceptional flexibility in working distance streamlines the scanning process, enabling seamless transitions between different part sizes—all while maintaining outstanding accuracy and efficiency.

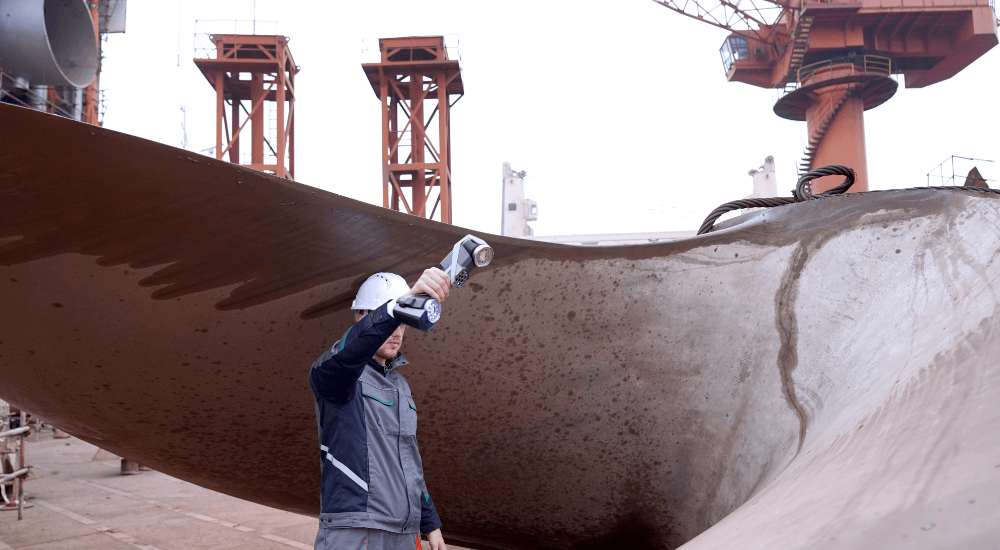

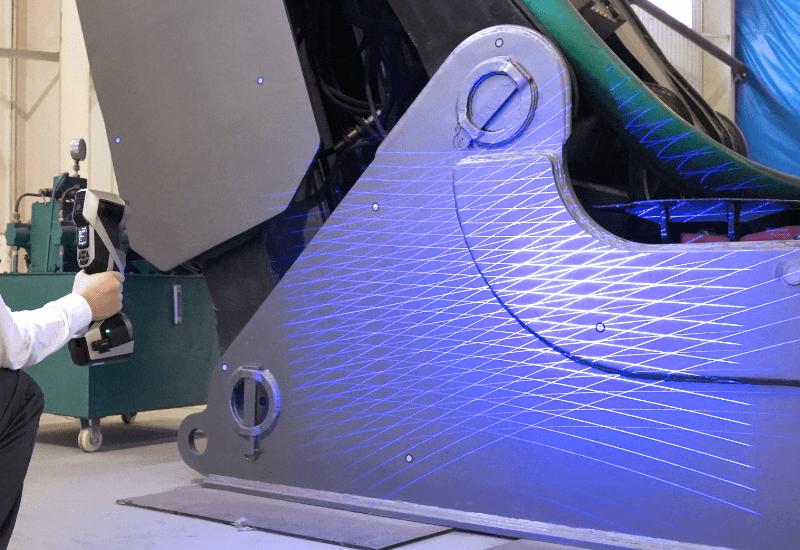

Ultra-large Parts & High Efficiency
For ultra-large parts, the KSCAN-X’s innovative 84 quad blue laser grid enables rapid wide-area capture, achieving remarkable 0.075 mm accuracy with a volumetric precision of 0.075 mm + 0.010 mm/m. The integrated adaptive photogrammetry system eliminates cumulative errors, ensuring consistent long-range measurement reliability even in challenging industrial environments.

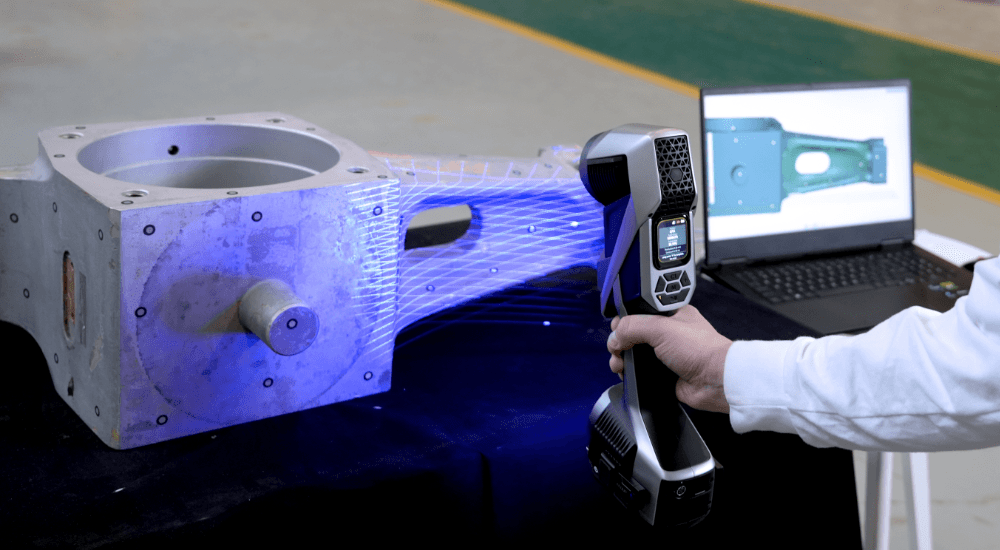

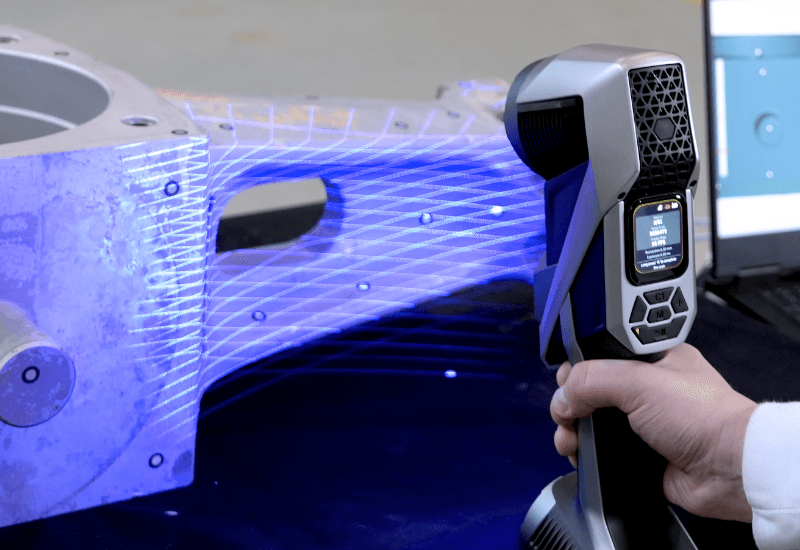

Mid-to-large Parts & Fine Details
When precision matters most for medium-to-large components, the KSCAN-X 3D scanner shifts seamlessly to its high-resolution mode. Utilizing a 52 quad blue laser grid optimized for 0.5-2 meter ranges, it captures intricate details with 0.030 mm accuracy - perfect for complex curves, fine features, precision engineering parts and demanding quality inspection applications.

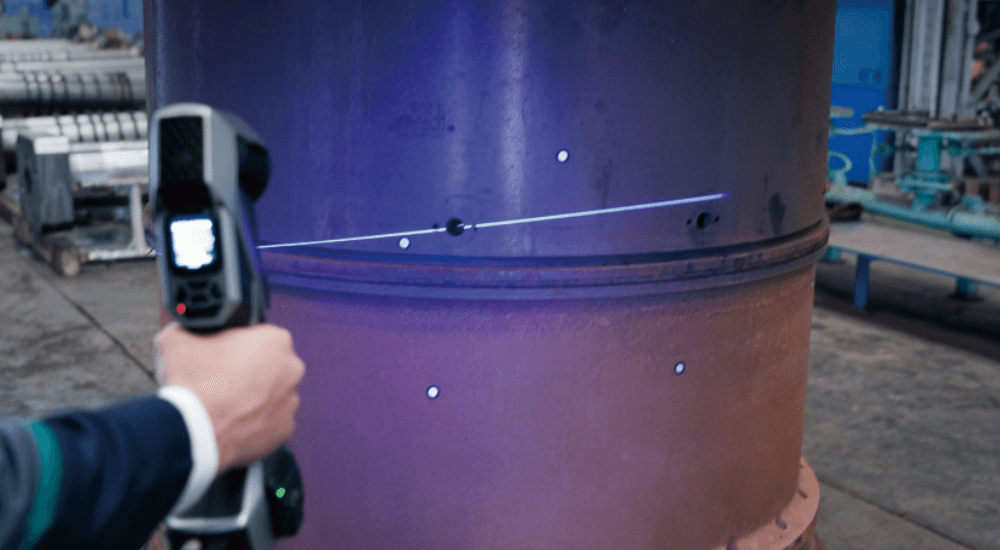

Deep Hole Measurement
Leave no blind spots in deep geometry
The KSCAN-X stands out with its compact, lightweight design and shorter baseline, making it more maneuverable than comparable scanners. Its specialized blue laser line precisely detects deep holes and complex geometries—from pipe interiors to gear teeth—delivering complete, accurate 3D data even in confined or hard-to-access spaces.
Robust on-board processing module
Handle large amounts of data efficiently

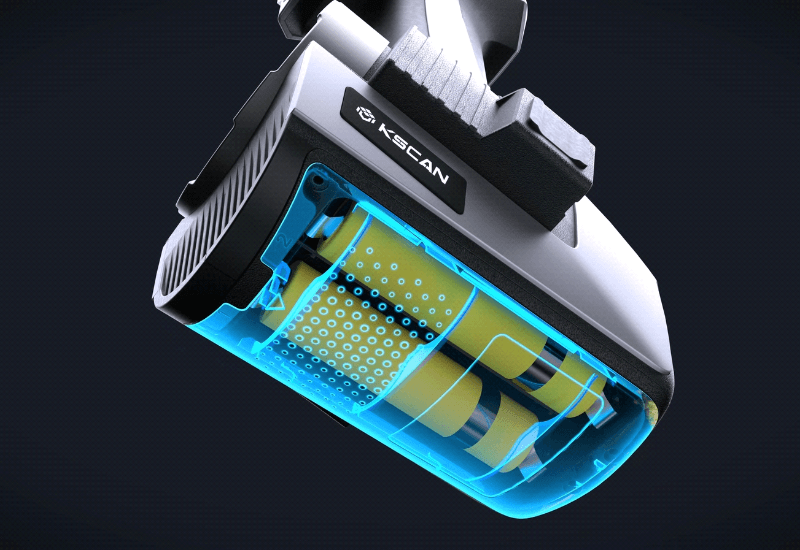

Dual-battery system
Ensures cable-free seamless scanning

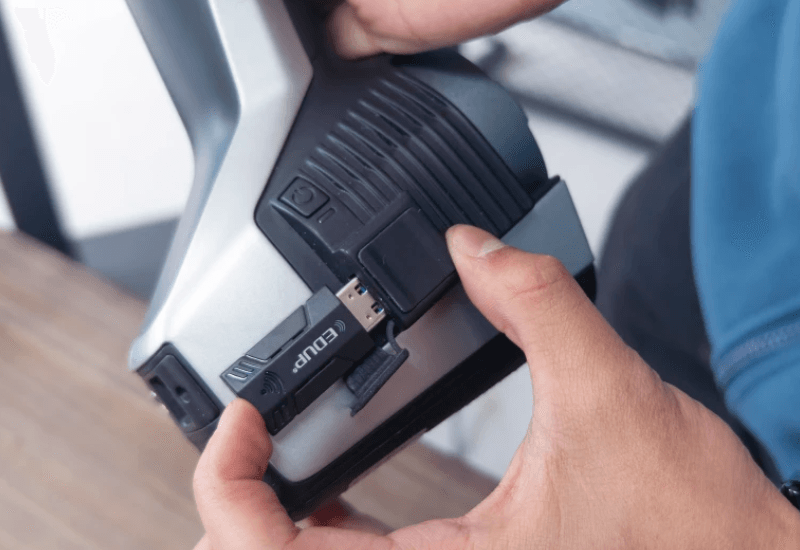

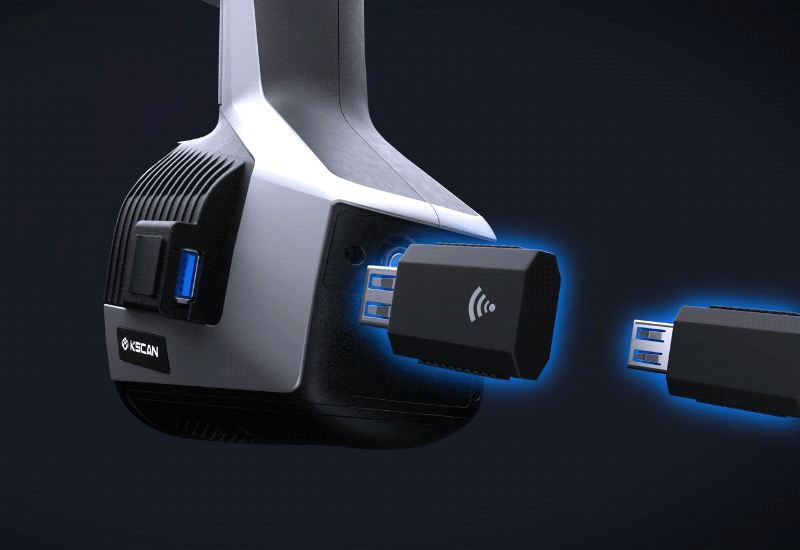

Dual-WNIC design technology
Stable wireless high-speed data transfers

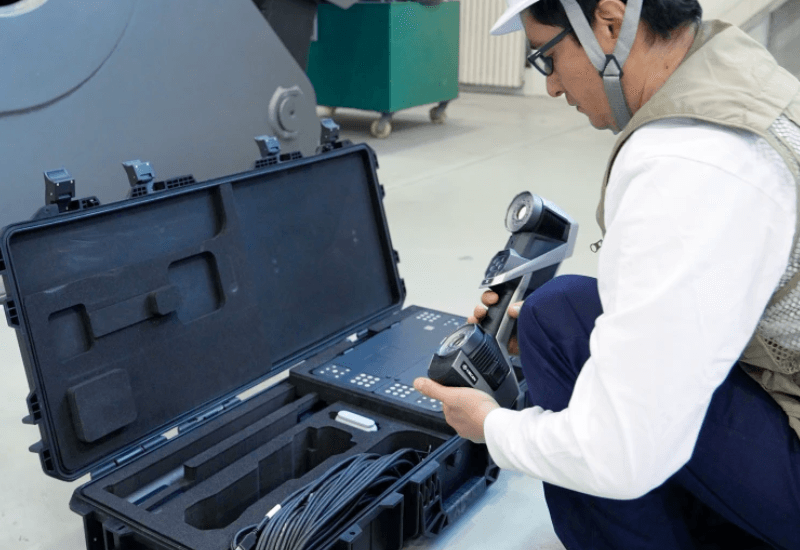

Compact & Ready to Go
Lightweight design in a portable protective case, for easy carry and set up.
Wireless Connection
No cables, no hassle — just power on and start scanning anywhere.

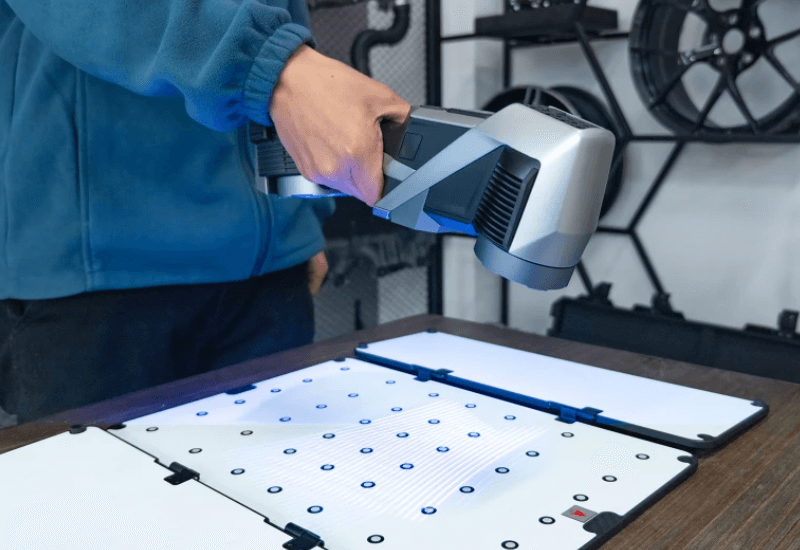

Fast Calibration
Calibrate in as little as 20 seconds, saving time and streamlining on-site work.

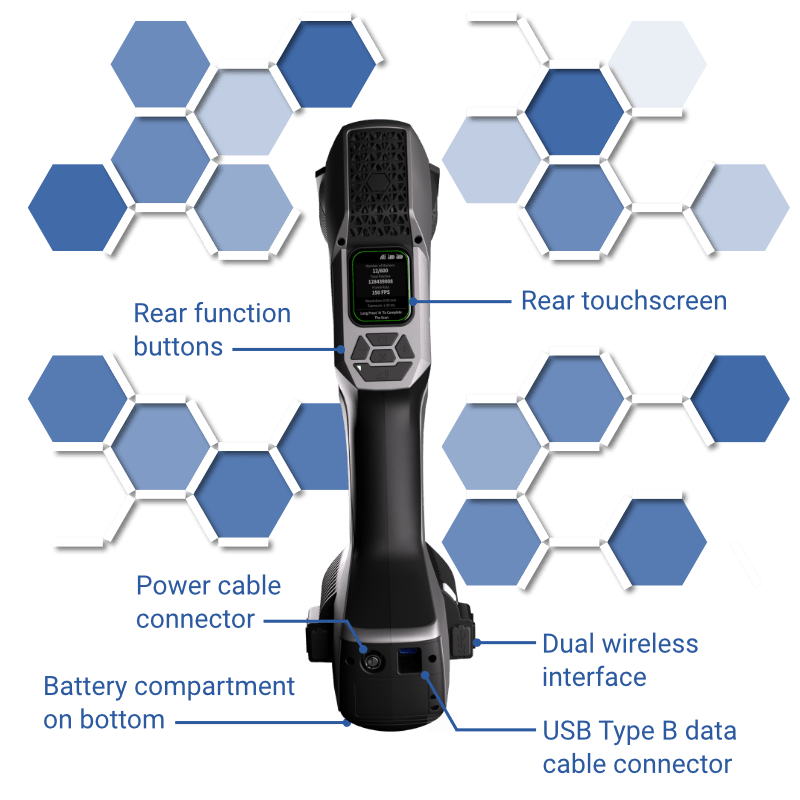

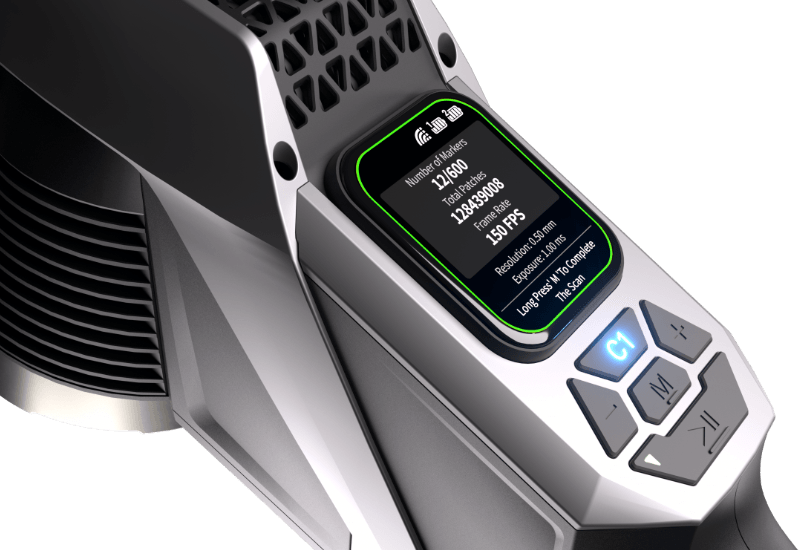

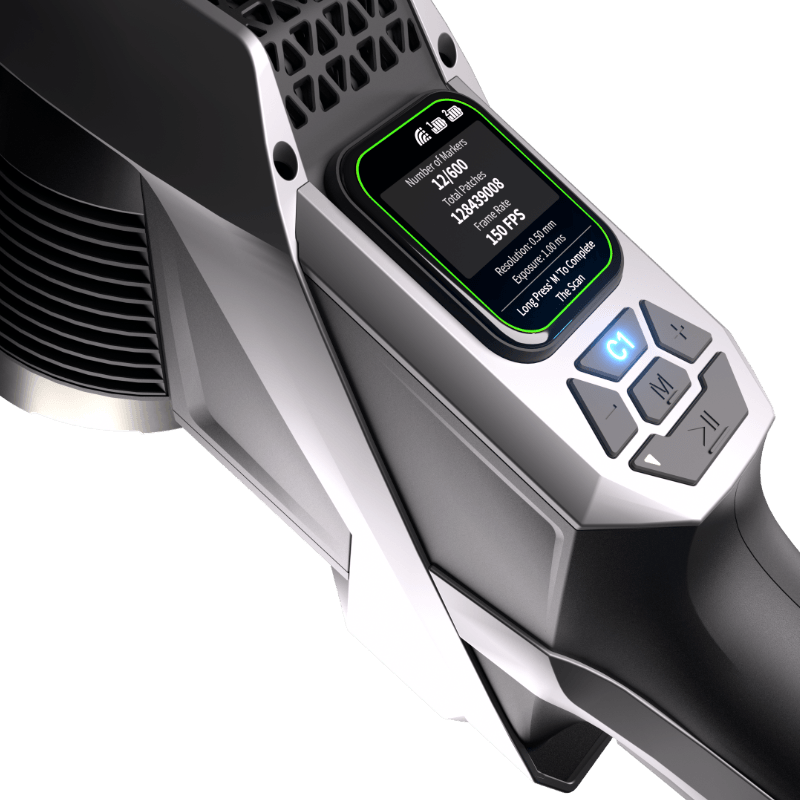

Smart Controls
One-touch smart buttons handle complex functions without a computer.

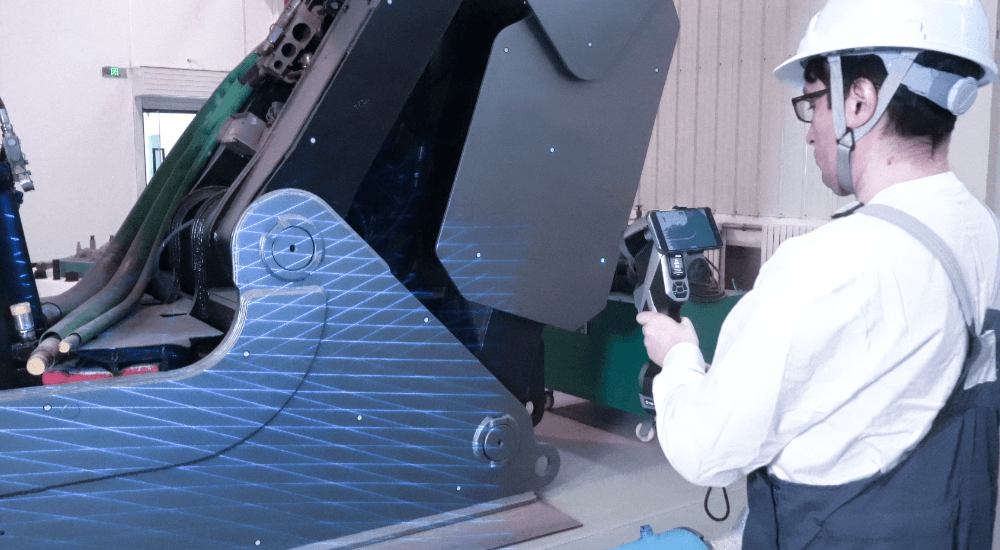

Real-time phone screen viewing and touchscreen interface
For the ultimate wireless 3D scanning experience
Complete the KSCAN-X’s wireless system with the included optional smartphone holder to attach your smartphone to the KSCAN-X and directly view what you are scanning for a truly seamless 3D scanning experience. Use the built-in full-color touchscreen for real-time harware and software updates. Coupled with the customizable buttons, the KSCAN-X is the ultimate wireless blue laser scanner in the industry.

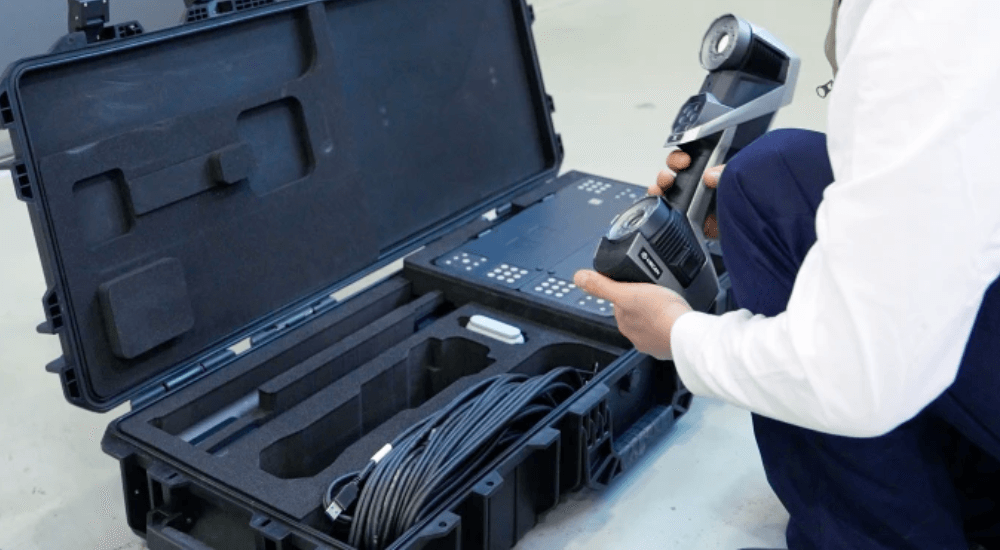

Industrial Grade Protection
Compact and secure storage
All Scantech products are packaged in industrial grade cases to assure that all components are stored securely and to make sure that no damage is caused during transportation.
In addition, the smart design of the protective case ensures that all components needed for the operation of the system can be accessed quickly.

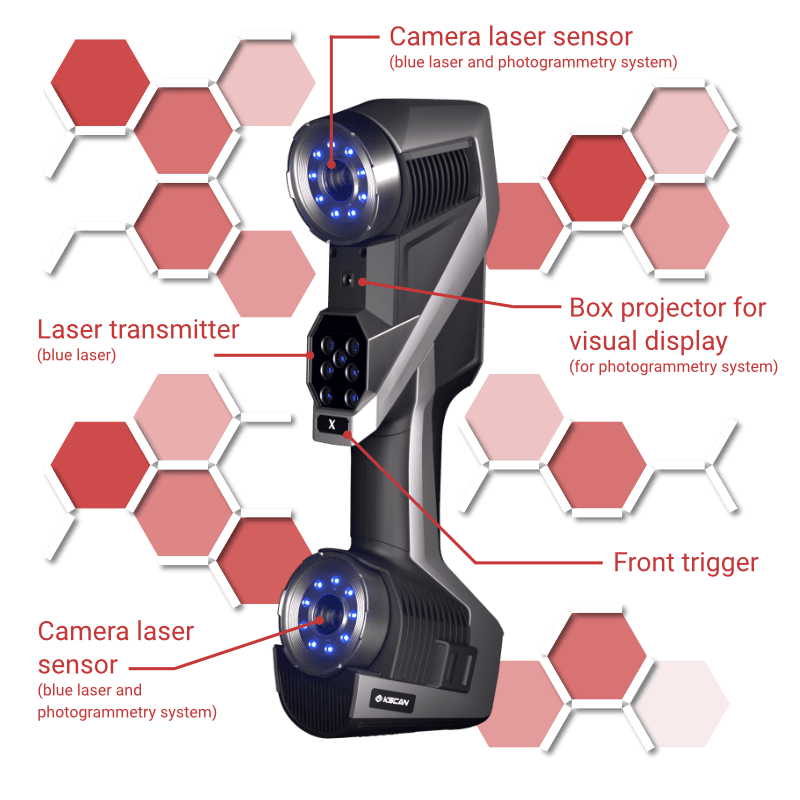

The KSCAN-X has three different scanning modes. All three modes utilize the blue lasers.
The difference between the three blue laser scanning modes is the number and configuration of the lasers. Basically, the higher laser count equates to faster scanning speeds while taking a small dip in accuracy and resolution. However, the scanning modes can be flexibly switched and combined to satisfy different application needs while satisfying the metrology-grade accuracy required for an efficient workflow.
The fourth mode uses infrared lasers to scan large objects the size of a small boat. The infrared laser allows for faster scanning times, in contrast to the blue lasers which are engineered for accuracy.
This unique combination of lasers makes the KSCAN-X a true all-purpose scanner.
The KSCAN-X is a versatile scanner that is able to scan objects the size of a small camera all the way up to small boats or turbines. This is made possible due to the unique combination of blue laser technology. The blue laser is used for both Medium-distance scanning, and large FOV scanning. Additionally, it also has an in-built adaptive photogrammetry system to avoid any loss in volumetric accuracy.
The KSCAN-X is designed to scan mid-to-large parts, with up to 84 blue lasers in a quad grid. It can scan from as far as 2.5 m with object sizes of up to 15 m.
Yes, the KSCAN-X can work in full wireless mode without the need to connect any cables to computer. It even includes an optional smartphone holder to attach your smartphone to the KSCAN-X and directly view what you are scanning for a truly seamless 3D scanning experience.

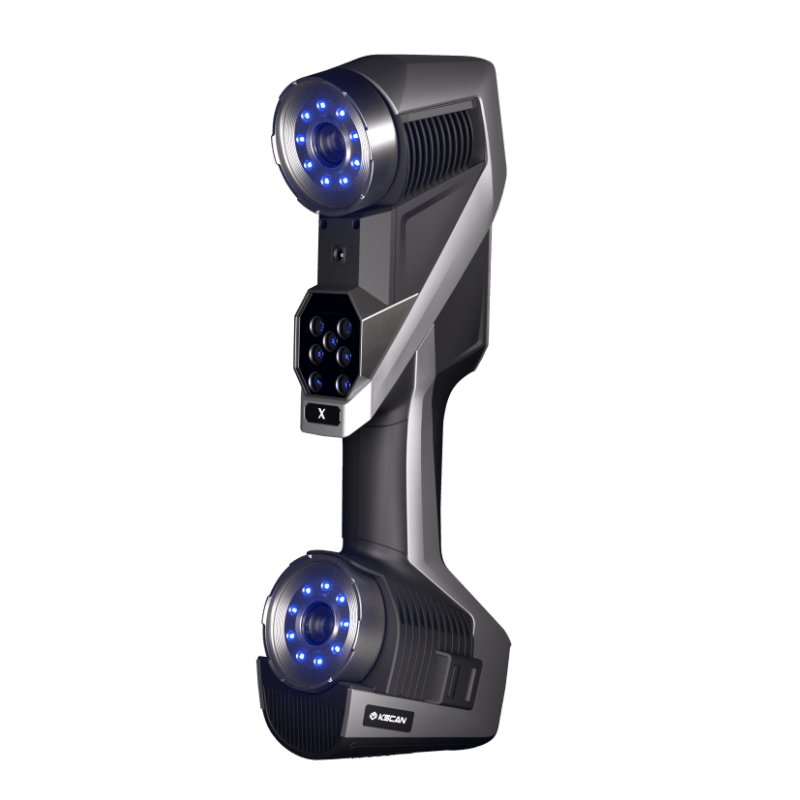

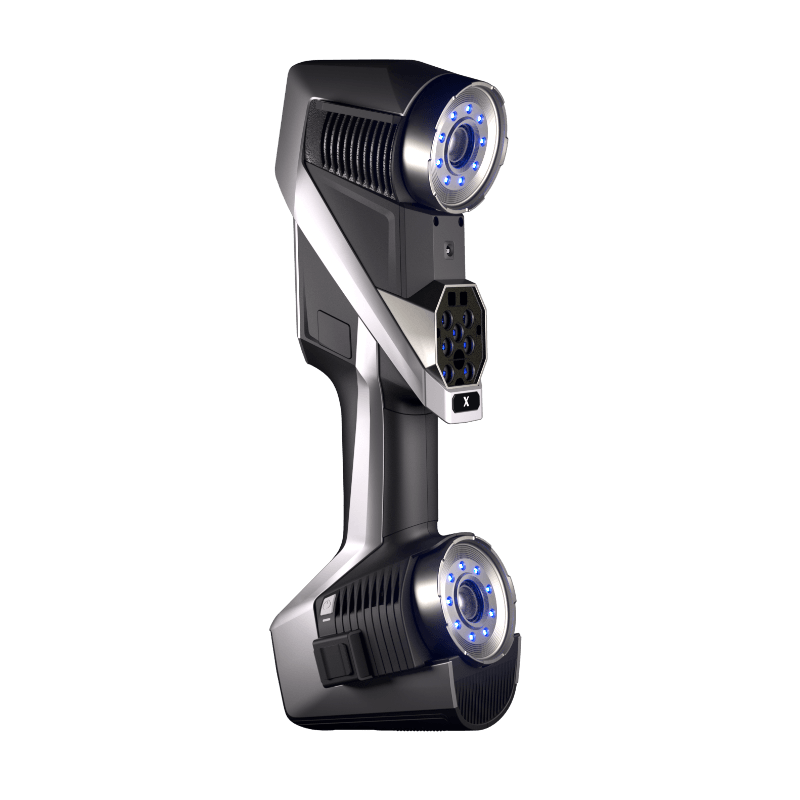

Award-winning, light and compact metrology grade 3D scanner with an ergonomic design
| Scanner Type | Handheld |
| Object Size 🛈 Typical Object Sizes: XS: Coins, Jewelery S: Camera, Pumps M: Engines, Sculptures |
XS, S, M |
| Laser source | Blue |
| Accuracy | Up to 0.020 mm |
| Resolution | Up to 0.025 mm |
| Output Type | 3D mesh |
Intelligent fully wireless optical tracking system for precision 3D scans without targets
| Scanner Type | Wireless, Handheld |
| Object Size 🛈 Typical Object Sizes: S: Camera, Pumps M: Engines, Sculptures L: Small boats, Turbines |
S, M, L |
| Laser source | Blue |
| Accuracy | Up to 0.025 mm |
| Resolution | Up to 0.020 mm |
| Output Type | 3D mesh |
Intelligent optical tracking system for delivering ultra-high precision 3D scans without markers
| Scanner Type | Handheld |
| Object Size 🛈 Typical Object Sizes: M: Engines, Sculptures L: Small boats, Turbines |
M, L |
| Laser source | Blue |
| Accuracy | Up to 0.025 mm |
| Resolution | Up to 0.020 mm |
| Output Type | 3D mesh |
Optical probing system for high-accuracy and flexible measurements
| CMM Type | Wireless, handheld |
| Object Size 🛈 Typical Object Sizes: S: Camera, Pumps M: Engines, Sculptures L: Small boats, Turbines |
S, M, L |
| Volumetric Accuracy | Up to 0.049 mm |
| Measurement Distance | 10 m |
| Part Size Range | 0.1 m to 12 m |
| Output Type | 3D points |
Photogrammetry system tailored to deliver precise geometric measurements of large parts
| CMM Type | Optical, handheld |
| Object Size 🛈 Typical Object Sizes: M: Engines, Sculptures L: Small boats, Turbines |
M, L |
| Volumetric Accuracy | 0.015 mm/m |
| Depth of field | 6.5 m |
| Capture area | Up to 9.4 m x 6.9 m |
| Output Type | 3D points |
Cutting-edge 3D scanner for capturing detailed 3D geometry and rich colors in textures
| Scanner Type | Handheld |
| Object Size 🛈 Typical Object Sizes: S: Camera, Pumps M: Engines, Sculptures |
S, M |
| Laser source | Structured infrared VCSEL |
| Accuracy | Up to 0.1 mm |
| Color reproduction | 24 bit |
| Output Type | 3D mesh + texture |
